IOT sensors
IOT and security sensors

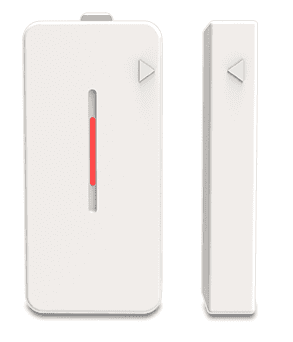

BLE door sensor
2.4G frequency, support BLE 4.1 version, backward compatible
▪ 3V 1PCS Lithium button battery, 2-3 years working life
▪ Current 15uA (standby), Alarm 5mA, 80m distance;
▪ Anti-tamper alarm, self-check once in one hour
▪ Imported reed switch, digital sending circuit
▪ Up to 16 million unduplicated encoding
▪ Low battery real-time detection
▪ Dimension: 78*49*19mm; Packing Size: 102*57*27mm
▪ N.W: 0.08KG; G.W: 0.09KG

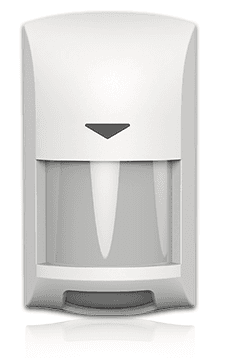

BLE PIR sensor
▪ 2.4G frequency, support BLE 4.1 version, backward compatible
▪ CR2450 battery, up to 2 years working life
▪ Current 15uA (standby), Alarm 18mA, 100m distance;
▪ DUAL, low noise passive IR
▪ Anti-false alarm ability
▪ Dimension: 53*38*59mm (L*W*H)

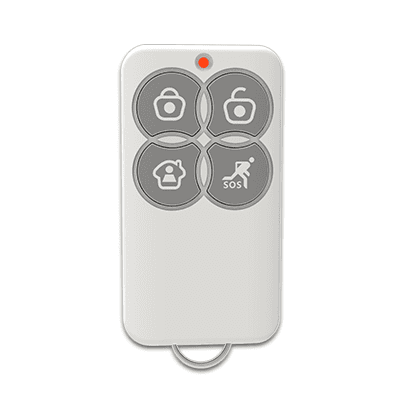

BLE keyfob
2.4G frequency, support BLE 4.1 version
▪ 4 buttons: away arm, disarm, home arm, SOS
▪ 3V 1PCS CR 2032 lithium button battery, 2-3 years battery life
▪ Standby current ≤1uA, operating current ≤15mA
▪ Dimension: 58*31*10mm; Packing Size: 66*34*17mm
▪ N.W: 0.03KG ; G.W: 0.035KG

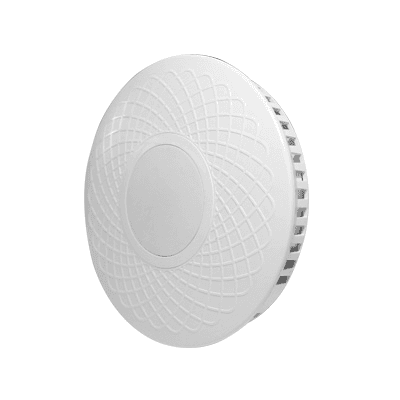

BLE SMOKE detector
▪ 2.4G frequency, support BLE 4.1 version, backward compatible
▪ Built-in alarm siren ≥85dB @ 1m
▪ Sensitivity: 1%~3 FT (0.14-0.43dB/m)
▪ Standby current ≤50uA, operating current ≤150mA
▪ With battery level monitoring, anti-tamper
▪ Dimension: 130*130*35mm; Packing Size: 140*164*42mm
▪ N.W: 0.26KG; G.W: 0.305KG

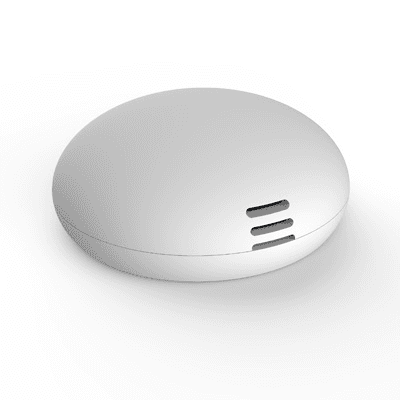

BLE temperature and humidity
▪ 2.4G frequency, support BLE 4.1 version, backward compatible
▪ Working Voltage 3VDC (1PCS CR2032 button battery)
▪ Communication Distance 50m (open area)
▪ Static current t≤5uA
▪ transmit current ≤10mA
▪ trigger report ,tamper report, battery level status report, heartbeat
report
▪ Dimension 36*36mm(Dia*H)

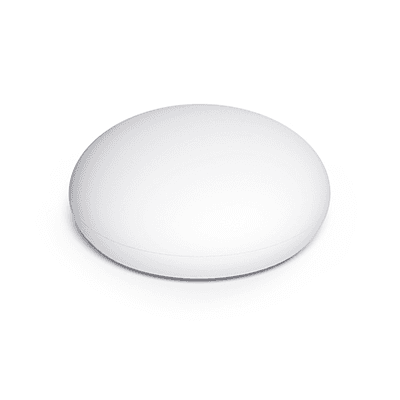

BLE water leakage
▪ 2.4G frequency, support BLE 4.1 version, backward compatible
▪ Working Voltage 3VDC (1PCS CR2450 button battery)
▪ Communication Distance 100m (open area)
▪ Static current t≤15uA
▪ transmit current ≤10mA
▪ trigger report ,tamper report, battery level status report, heartbeat
report
▪ Dimension 60*15mm(Dia*H)
